products

Dry Fish Feed Machine

Mainly used for a variety of aquatic products, pet and other pellet feed curing molding process (such as: float and sink of fish feed, frog feed, pellet suckling pig feed).
Call Center: (+86) 371 69396261 / (+86) 15837176525
Share us:
Dry Fish Feed Machine Use And Application
Mainly used for a variety of aquatic products, pet and other pellet feed curing molding process (such as: float and sink of fish feed, frog feed, pellet suckling pig feed).

dry-fish-feed-machine
Dry Fish Feed Machine Working Principle
1. During the extruding process, material feed from the end of the machine cavity convey to the whole cavity by screw, then divided into several regions at an extruded part, each region has a ring (press ring) to control flow and press. Screw convey function drive the material through the gap between the press ring and cavity, screw rotating motion generate energy with the friction between material and extruder parts is transformed into thermal energy.
2. In most cases, the material rich with starch and protein is cooked into a sticky dough or gelatinous dough. During the transform process, the material has large physical and chemical changes mainly are the results of starch and protein changes.
3. When the material is extruded through molding holes at the end of the machine cavity, make the dough material processed into a certain shape. Due to the large of the propulsive force of screw inside the cavity, the material has a huge pressure, when the material is extruded from the molding holes, it instantly vaporized a large quantities moisture, greatly reduces the material moisture content.
4. When producing low-density products, it would have a large expansion depends on the molecular structure of the material, and all condition and material used during the extruding process
5. When producing high-density products, it would not expansion large depends on the purging pressure port on the cavity and all condition and material used during the extruding process.

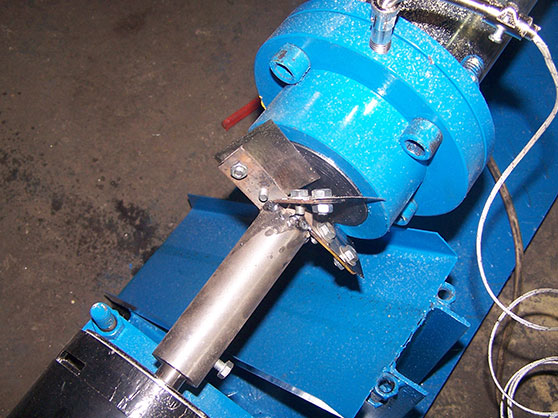

dry fish feed machine

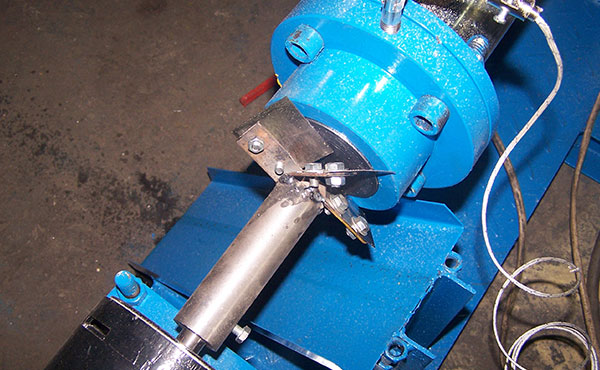

dry fish feed machine
Models And Parameters
Style Capacity T/H Main Power
(KW)
Feeding Power
(kw)
Spiral Diameter
(mm)
Cutting Power(kw) Dimensions
(mm)
Weight
(kg)
DGP40-C Single Phase 0.03-0.04 3.0*2 0.4 Φ40 0.4 1500*1400*1250 280
DGP40-C Three Phase 0.03-0.04 5.5 0.4 Φ40 0.4 1400*1030*730 240
DGP50-C 0.06-0.08 11 0.4 Φ50 0.4 1470*1100*1250 320
DGP60-C 0.12-0.15 15 0.4 φ60 0.4 1470*1120*1250 350
DGP70-B 0.18-0.25 18.5 0.4 φ70 0.4 1650*1400*1300 580
DGP80-B 0.3-0.35 22 0.6 φ80 0.6 1800*1450*1300 695
DGP90-B 0.4-0.45 37 0.6 φ90 0.8 2100*1450*1350 950
DGP120-B 0.5-0.6 55 1.1 φ120 1.5 2400*1950*1600 1700
DGP135-B 0.7-0.8 75 1.1 φ133 2.2 2550*2050*1650 1900
DGP160-B 1.0-1.2 90 1.5 φ155 3.0 3100*2650*1800 3200
DGP200-B 1.8-2.0 132 2.2 φ195 3.0-4.0 3100*2850*1900 3800

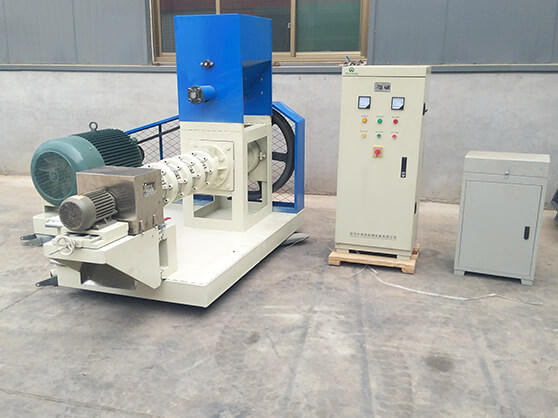

Dry Fish Feed Machine

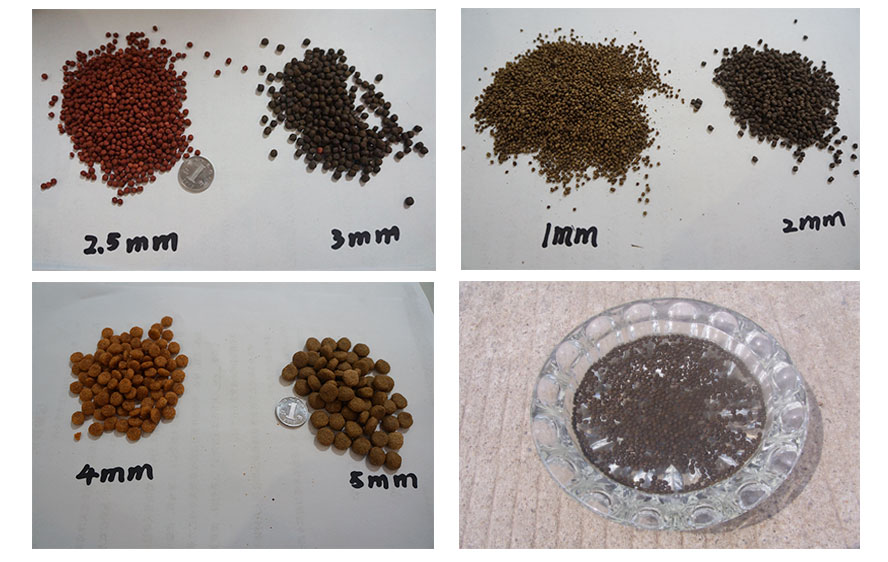

Dry Fish Feed Machine Finished Pellets
Dry Fish Feed Machine Finished Pellets
Fusmar is also the professional fish meal production line, if you want to build your own fish feed production line, please turn to http://www.feedpelletmills.com/products/floating-fish-feed-machine/wet-fish-feed-production-line.html.

Fish Feed Pellet Machine DGP-100



Fish Feed Pellet Machine DGP-135

Fish Feed Pellet Machine DGP-160
