Diesel Flat Die Feed Pellet Machine

Diesel flat die feed pellet mill is special designed for making small scale feed pellets for chicken, rabbit, cattle, sheep, pig, etc.
Call Center: (+86) 371 69396261 / (+86) 15837176525
Share us:
Diesel Flat Die Feed Pellet Machine Introduction
Diesel flat die feed pellet mill is special designed for making small scale feed pellets for chicken, rabbit, cattle, sheep, pig, etc. Its small size and diesel engine make it movable and very convenient to move around. It can process corn, alfalfa, wheat, rice, oil cake, etc. into granule at one time. Nutrients can also be added to the raw materials. Therefore, with a diesel flat die feed pellet mill, you can make your own feed pellets with your special ingredients.

Diesel Flat Die Feed Pellet Mill Application
Raw materials: The raw material can be corn, alfalfa, wheat, rice, bran, grass, beans, oil cake, etc. Protein or other nutrients can also be added to the raw materials.
Application industry: It is widely applied in the small or medium aquaculture industries, feed pellet plant, livestock and poultry farm, small-scale and individual farms, and small feed processing plants, etc.

Features of Diesel Flat Die Feed Pellet Mill
* Small size, compact structure, low noise, easy operation, and long service life.
* Roller and flat die are all made of high alloy steel, good wear resistance.
* Both the diameter and length of feed pellets can be adjusted conveniently.
* The die compression ratio can be adjusted according to raw materials.
* Clutch and accelerating-decelerating devices are adopted to control the pelletizing speed.

Diesel Flat Die Pellet Mill Working Principle
When the roller driven pellet mill is in operation, the flat die is totally stationary, while the rollers are rotating and revolving on its own shaft. The relative motion between roller and flat die will compress the materials into die holes. After a certain time they are squeezed out in the cylindrical form. Cutters on the other side of the flat die will cut the exposed cylinder into regular length, then the feed pellets are discharged outside.

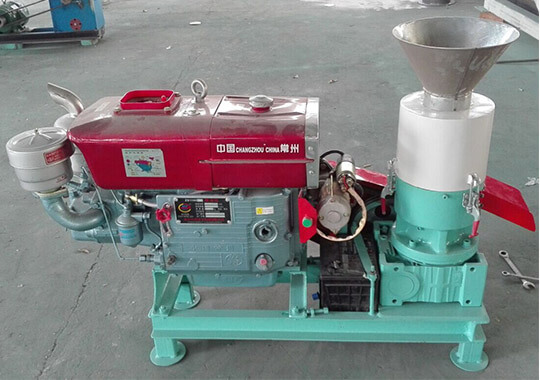

diesel flat die wood pellet mill
diesel flat die wood pellet mill
Advantages of Diesel Flat Die Wood Pellet Mill
* Suitable for various biomass materials, no binder added when pelletizing.
* Pellet diameter can be set from 6mm-12mm, and the length can be adjusted conveniently.
* Driven by diesel engine, it can satisfy the requirements of mobile production.
* Clutch and accelerating-decelerating devices are adopted to change running speed.

After pelletizing, the feed pellets have a smooth surface, high hardness, good palatability and fully degree of internal maturation. The nutritional quality is largely improved, easy to be digested and absorbed. Besides, parasitic ovum and other microbial pathogens are killed during pelletizing, convenient for long-term storage and transportation.


Disel Flat Die Pellet Mill Parameters:
Model Power Flat die Dia. Pellet Dia. Material moisture Capacity Dimension
KL120A ZR180-R00, 8HP 120mm 2.5-10mm 12%-20% 60-100kg/h 870*440*730mm
KL150A ZR180-R00, 8HP 150mm 2.5-10mm 12%-20% 90-120kg/h 870*440*730mm
KL200A ZS1100, 15HP 200mm 2.5-10mm 12%-20% 200-300kg/h 1180*560*950mm
KL230A ZS1115, 22HP 230mm 2.5-10mm 12%-20% 300-400kg/h 1000*460*900mm
KL260A KW2105P, 35HP 260mm 2.5-10mm 12%-20% 400-600kg/h 1840*700*1160mm
KL300A ZH4100P, 55HP 300mm 2.5-10mm 12%-20% 600-800kg/h 2270*620*1260mm
KL400A ZH4100P, 55HP 400mm 2.5-10mm 12%-20% 900-1100kg/h 2270*620*1260mm
