Wet Fish Feed Machine

Wet fish feed machine work with the boiler, the boiler continously can supply hot steam to the fish feed machine extrusion part
Call Center: (+86) 371 69396261 / (+86) 15837176525
Share us:

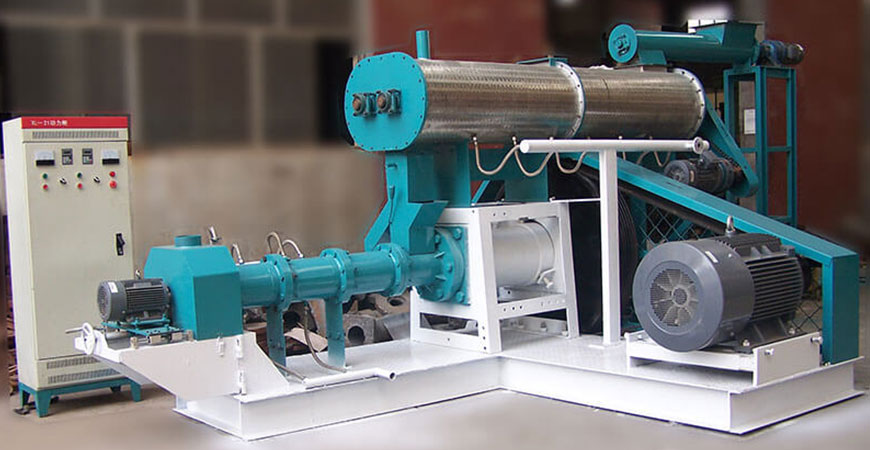

Wet Fish Feed Machine Introduction
Wet fish feed machine work with the boiler, the boiler continuously can supply hot steam to the fish feed machine extrusion part. The machine can produce different sizes pellets, from 0.9mm-1.5mm, for fish, shrimps, lobsters, crabs.
This machine adopts steam adoption and has a large capacity and quality. It’s the perfect choice for middle and large aquaculture farms or fish feed pellets processing plant. We also apply this machine in the wet fish production line, please check this machine in the production line.
  Wet Fish Feed Machine
Wet Fish Feed Machine Applications
2.1 It has high capacity and is suitable for the large aquaculture farm or fish feed pellets processing plant.
2.2 It’s suitable for making the pellets of fish, shrimps, lobsters, crabs.
2.3 It’s also used to produce pet food, like cats food and dog food.
2.4 This machine can produce the floating fish feed pellets and shrinking fish feed pellets.
2.5 The material can be corn, soybean meal, wheat bran, rice bran, fish meal, etc.
  Wet Fish Feed Machine
Wet Fish Feed Machine Features
3.1 High capacity and low consumption, flour material can be processed to improve pellet quality and efficiency.
3.2 Advance the frequency control system, with this system, it can produce different sizes pellets by changing the speed.
3.3 There are 4 kinds of molds that meet all sizes requirements. They are easily taken out and changed.
3.4 The regulator is connected with the boiler, the materials can be pre-steamed totally, so the quality and efficiency of the pellets are obviously improved.
3.5 Stable functions, it can work continuously.

4. Wet Fish Feed Machine Working Principle
Since the environment of the extrusion chamber is high pressure and high temperature, so the starch in the material will become a gel, and the protein will be denaturation. This will improve the water stability and digestibility. At the same time, Salmonella and other harmful bacteria are killed in this process. When the material coming out from the extruder outlets, the pressure will disappear suddenly, then it forms the pellets. The cutting device on the machine will cut the pellets into required length.
Wet Fish Feed Machine
Wet fish feed machine models and technical parameters
Model Capacity(T/H) Main Motor Power
(KW)
Feeder Power (KW) Spiral Diameter
(mm)
Cutting Power(kw) Conditoning (kw) Dimensions(mm) Weight(kg)
DSP60-III 0.18-0.2 15 0.4 60 0.4 0.75 1780*1250*1300 480
DSP70-III 0.25-0.30 18.5 0.4 70 0.6 1.5 2460*1550*1740 940
DSP80-III 0.35-0.40 22-30 1.1 80 0.75 1.5 2650*1450*1750 1000
DSP90-III 0.50-0.60 37 1.1 90 1.1 2.2 2600*2100*1900 2000
DSP120-III 0.70-0.80 55 1.1 120 1.5 2.2 3200*1950*1900 2200
DSP135-III 1.0-1.2 75 1.5 135 2.2 3.0 3750*1980*1800 2500
DSP160-III 1.8-2.0 90 2.2 160 2.2 4.0 6600*2800*2330 3800
DSP200-III 3.0-4.0 132 2.2 200 3.0 5.5 6600*2900*2350 4500

Wet Fish Feed Machine

This wet fish feed machine is very suitable for large capacity fish meal production line, Fusmar can also provide the complete solutions to fish feed pellet production line, for more details, please turn to http://www.feedpelletmills.com/products/floating-fish-feed-machine/wet-fish-feed-production-line.html.


Dry Fish Feed Pellet Machine  DGP-135 Video:


Dry Fish Feed Pellet Machine  DGP-100 Video:
