Flat Die Wood Pellet Machine

Biomass pellets now are now welcome world wide, it has many advantages compared with the traditional petroleum ,gas,coal,wood,etc. They are renewable and sustainable, cost effective and Eco-fiendly.
Call Center: (+86) 371 69396261 / (+86) 15837176525
Share us:
Biomass Pellets Introduction
Biomass pellets now are now welcome world wide, it has many advantages compared with the traditional petroleum ,gas,coal,wood,etc. They are renewable and sustainable, cost effective and Eco-fiendly.
  Flat-Die-Wood-Pellet-Machine

The flat die wood pellet machine introduction
Flat die die wood pellet machine has simple structure,small size and cost less, so it has the advatages of low energy consumption, very good mobility, so it is very suitable for the family workshop.

Material for flat die woode pellet machine
3.1. Raw materials for animal feed pellets making
Raw materials include corn, maize, alfalfa, wheat bran, grass, rice, beans, oil cake, etc. If the size of the materials is larger than 6mm, the materials should be ground by hammer mill. Usually protein or other nutrients can also be added to the powdery raw materials.
  animal feed pellets making

3.2. Raw materials for wood pellets making
There is a wide range of raw materials for making wood pellets, such as wood chips, wood shavings, sawdust, straw, hay, bamboo, sunflower husk, corn stalks, bagasse, palm shells and other biomass materials.
   wood pellets making
Flat die woode pellet machine advatages
4.1 The Feeding Way. Flat die pellet machine feeds the material into the pressing chamber vertically by the weight of itself. And the process speed is even.
4.2 The diameter of the roller is out of the limit of the flat die, it can expand the inner bearing space. The bigger bearing not only can increase the endurance of the roller,but also improve the pressing power and prolong its life-span.
4.3 The Discharging Way, flat die has low rotation speed, then it low rate of spoiled pellets.
4.4 The roller way adjusting way. Flat die roller can adjust with the thread column by manual rotation or hydraulic automation.

Flat die woode pellet machine  working Principle

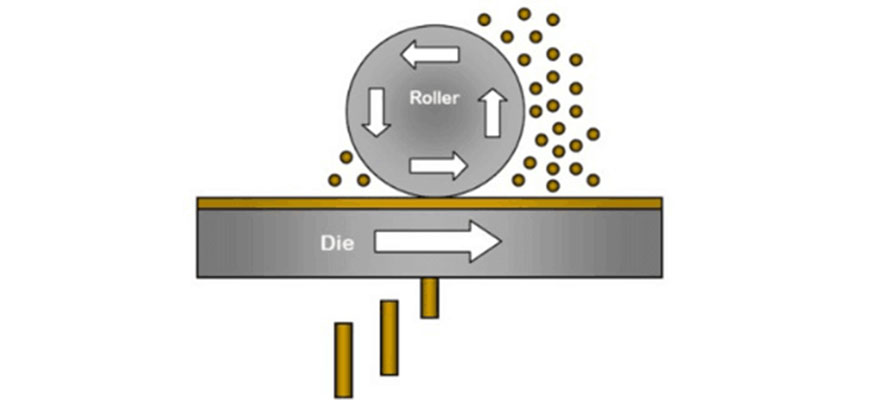

The first pellet mill design at the turn of the 20th century based on flat dies. Generally, there are two types of flat die pellet mills in the market, the rotating die type and the rotating roller type. The former one has a stationary roller with the rotating die while the latter has a stationary die with a rotating roller. Adopting vertical principle, the raw materials drops down by the its own weight into the pelletizing chamber where they are compressed between the rollers and die to form pellets by going through the die holes.
  Flat die woode pellet machine
Parameters And Prices
Model Matching Power/Tractor Voltage Flat Die  Φ(mm) PelletΦ(mm) Material Moisture Wood Pellet Capacity(KG/H) Feed
Pellet Capacity(KG/H)
FOB Price Packing Dimensions(CM)
KL120A ZR180-R00,8HP -- 120 2.5-10 12%-20% 40-60 60-100 980USD$ 87*44*73
KL120B Y100L1-4,3KW 220V/50HZ
380V/50HZ
120 2.5-10 12%-20% 40-60 60-100 810USD$ 75*35*65
KL150A ZR180-R00,8HP -- 150 2.5-10 12%-20% 50-90 90-120 1030USD$ 87*44*73
KL150B Y112M-4,4KW 380V/50HZ 150 2.5-10 12%-20% 50-90 90-120 880USD$ 75*35*65
KL200A ZS1100,15HP -- 200 2.5-10 12%-20% 110-140 200-300 1100USD$ 118*56*95
KL200B Y132M-4,7.5KW 380V/50HZ 200 2.5-10 12%-20% 110-140 200-300 1100USD$ 100*43*95
KL200C Y132M-4,7.5KW 380V/50HZ 200 2.5-10 12%-20% 110-140 200-300 1120USD$ 100*46*90
KL230A ZS1115,22HP -- 230 2.5-10 12%-20% 150-190 300-400 1750USD$ 118*56*95
KL230B Y160M-4,11KW 380V/50HZ 230 2.5-10 12%-20% 150-190 300-400 1650USD$ 114*47*97
KL230C Y160M-4,11KW 380V/50HZ 230 2.5-10 12%-20% 150-190 300-400 1750USD$ 114*54*93
KL260A KW2105P,35HP -- 260 2.5-10 12%-20% 220-280 400-600 3050USD$ 184*70*116
KL260B Y160L-4,15KW 380V/50HZ 260 2.5-10 12%-20% 220-280 400-600 1890USD$ 112*52*107
KL260C Y160L-4,15KW 380V/50HZ 260 2.5-10 12%-20% 220-280 400-600 1970USD$ 112*53*107
KL300A ZH4100P-55HP -- 300 2.5-10 12%-20% 300-360 600-800 4200USD$ 227*62*126
KL300C Y180L-4,22KW 380V/50HZ 300 2.5-10 12%-20% 300-360 600-800 2500USD$ 128*60*105
KL400A ZH4100P,55HP -- 300 2.5-10 12%-20% 400-550 900-1100 5750USD$ 227*62*126
KL400C Y200L-4,30KW -- 400 2.5-10 12%-20% 400-550 900-1100 4250USD$ 152*60*115

Flat die woode pellet machine accessory
  Flat die woode pellet machine accessory
